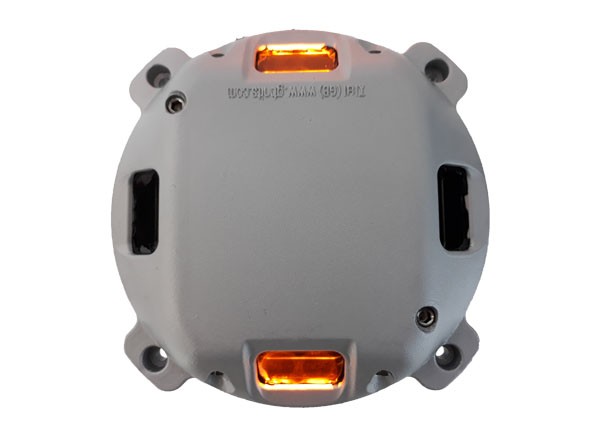

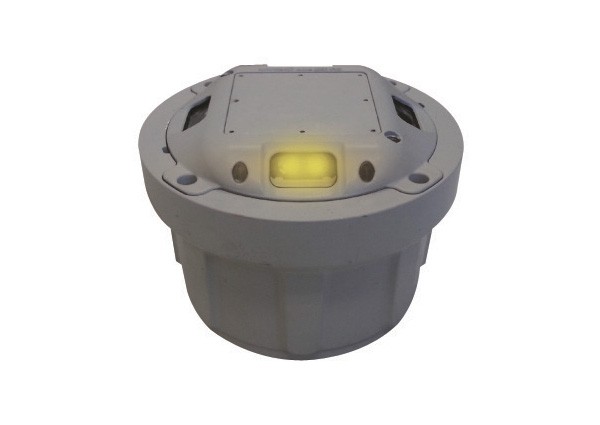

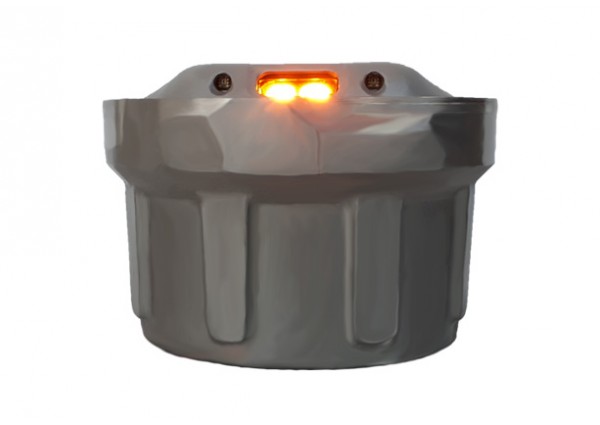

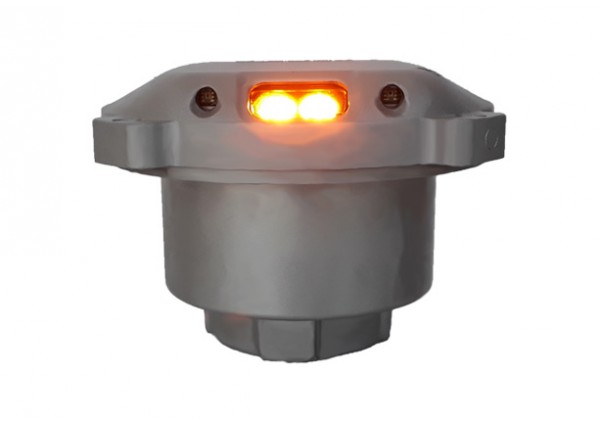

Crosswalk Notification Device
(Crosswalk collision prevention system)
Product Specifications
| PIIN (Procurement Instrument Identification Number): |
46161585 - 22659376 |
|---|---|
| Model (Product No.) | GB-OS-E-03 |
| Product Name | Road sign-Crosswalk notification device |
| Size | External Diameter: D180mm (Internal Diameter: D150mm) x H108mm |
| Height of Probe | Pavement Prove 15mm |
| Dust proof and Waterproof | IP68 |
| Compressive Strength | 150 KN |
| Fatigue test | Wheel tracking 20,000 times |
| Cold-resistant, heat-resistant operating temperature | -20 ~ 65℃ |
※ 13 category tests, such as brightness, chromaticity, salt spray, sand-blasting, were conducted.
Explanation
This is to prevent against car accidents in advance by giving visual warnings to drivers and pedestrians using Alarm Device (using a signal lamp) on the roads of residential areas, business areas, School zones, local housing areas, back roads and non-signal based intersections
An environmentally-friendly system using solar energy (commercial electrical power system also available)
An active and intelligent safety facility to detect vehicles with built-in optical sensors within the signal lamps and to warn about the approach of vehicles to drivers and pedestrians
An environmentally-friendly system using solar energy (commercial electrical power system also available)
An active and intelligent safety facility to detect vehicles with built-in optical sensors within the signal lamps and to warn about the approach of vehicles to drivers and pedestrians

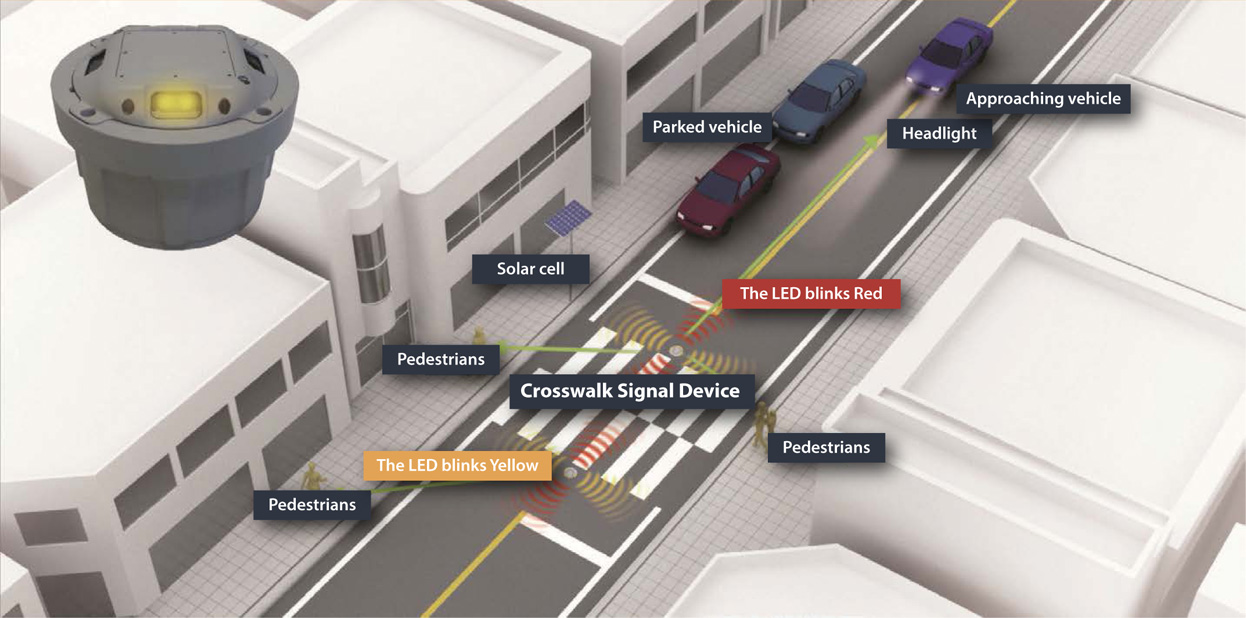

Conceptual Diagram
Operation Principle(Installation Overview)
- This is done by installing a signal lamp including an LED and sensors to detect the vehicles (the optical sensor detects the vehicle’s headlights) at the center of the intersection, supplying the power is supplied using a solar cell (Commercial electrical power is also available)
- It gives a warning sign to the approaching cars or pedestrians by blinking the LED, if the entry of cars is detected
Operate
| Daytime | The Yellow LED blinks all the time |
|---|---|
| Night time | It detects vehicles using the optical sensors in the signal lamp. |
| If there are no vehicles | ● The LED blinks Red (Vehicle direction, 2 times/sec) |
| If there is an Approaching vehicle | ● ● Both of the Yellow and the Red LED blinks |
| ● The Red LED will be blink on toward an approaching car (Blinking speed will be faster) | |
| ● The Yellow LED will be blink on toward pedestrian |

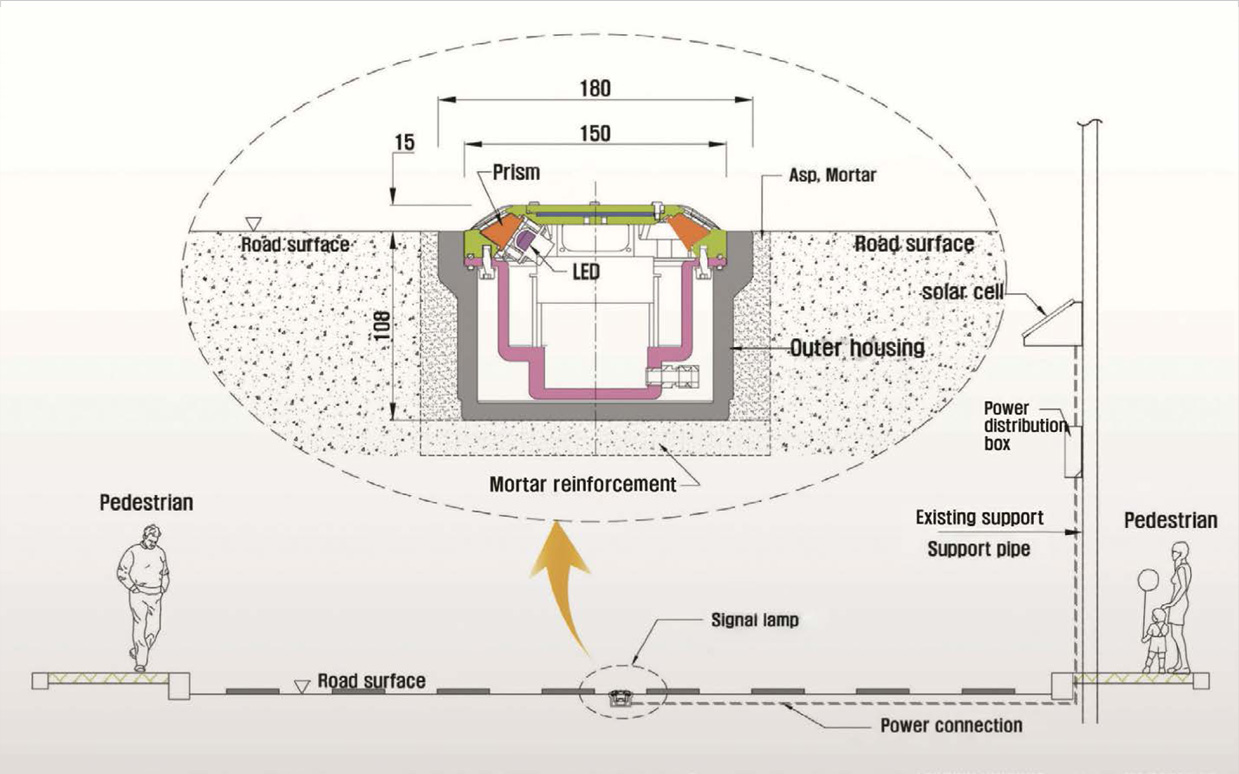

Installation Profile

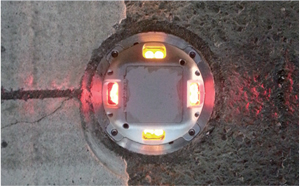

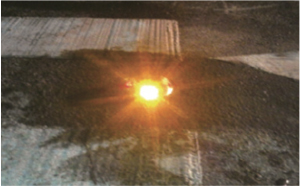

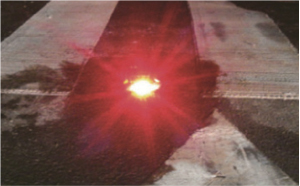

Operational Picture

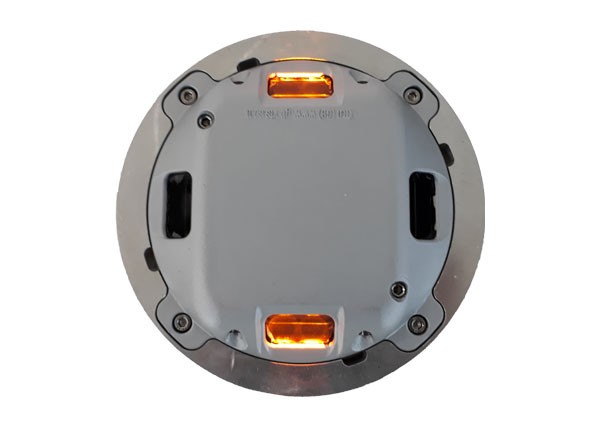

No vehicle blinking
Red LED

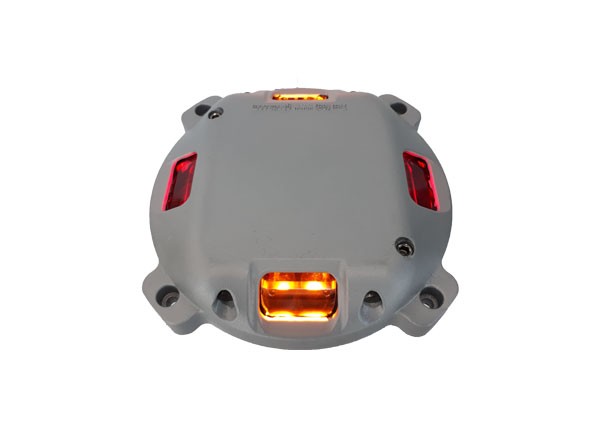

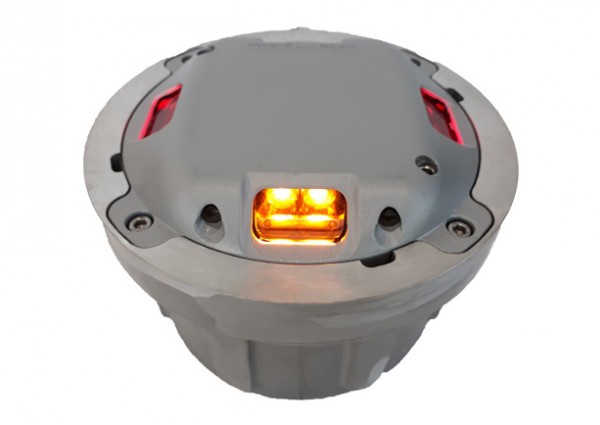

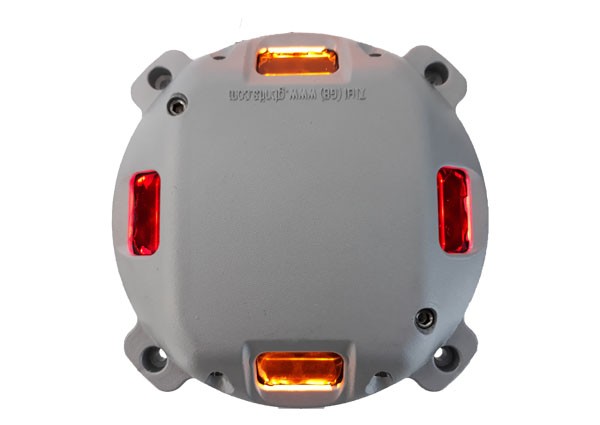

Approach of the vehicle blinking
Red, Yellow LED
Pedestrian direction Blinking
Yellow LED
Vehicle direction Blinking
Red LED
Application Field
- Crosswalk without signals (unsignalized)(Residential areas, Commercial Zones, Local housing roads etc.)
- 30km/hr limit Zones (School zones, retiree zones, etc.)
- Bicycle lanes
- Curved and dangerous roads
